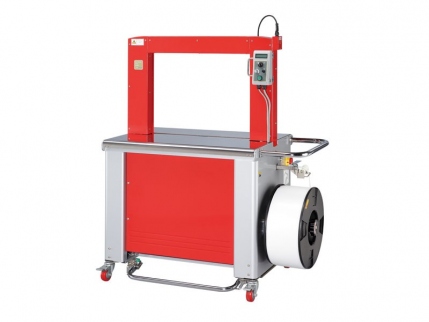

Tp-702ya high-speed full-automatic side bundling machine adopts the tp-702 mercury bundling head, which is popular in more than 890000 countries in the world. It has the most advanced design level in the world and is the fastest and most stable side bundling machine in the market today. This series of products can be widely used in different industries. In addition to the common logistics industry and white home appliance industry, it can also be used in a variety of difficult packaging environments, such as brick and tile building materials, aquatic products, meat products, etc. its excellent performance can greatly improve the packaging efficiency of the production line.
This series includes：
Tp-702ya high speed unmanned automatic side banding machine
Tp-702y high speed automatic side banding machine
Tp-702ym high speed stainless steel automatic side banding machine
Tp-702yam high speed stainless steel automatic side banding machine
Machine characteristics
♦ state of the art baling head design
♦ tool free maintenance (patent)
♦ including LCD display control panel
♦ automatic threading design
♦ auto bounce function
♦ automatic tail removal
♦ adjustable desktop height
♦ quick change belt design
♦ and upstream and downstream unmanned equipment linkage (tp-702 ya a , tp-702yam)
♦ it can be washed, aiming at the low level of aquatic food industry and meat processing industry
♦ warm and humid environment (tp-702ym , tp-702yam)
Optional accessories
♦ Band detection (tricolor light)
♦ Optional accessories
♦ Desktop without roller
♦ Desktop sleep mode
♦ Side push rod
♦ Double down bar
♦ Siemens PLC control (tp-702 ya , tp-702yam)
♦ Abnormal signal and baling completion signal
| model | TP-702-12 |
| Packing speed | 60 / min |
| Binding force | 45KGS |
| Applicable packing belt specifications | 8，9-12mm |
| Table height | 820-920mm |
| Power supply | 220V./1PH |
| Power consumption | 1.2KW |
| Bow frame size | W650*H500mm |
| Bow frame enlarged (optional) | Increase one grid by 200mm |
| Machine size | L1195*W652*H1525mm |
| Machine weight | 116KG |
