Full automatic through arrow tray baling machine TP-703VLM
Classification: Pallet packer
Describe:

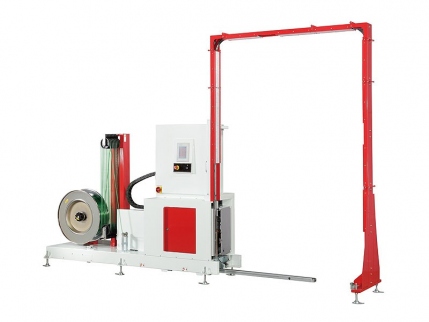

Tp-703vlm Pollux is a fully automatic through arrow tray vertical packer. The machine head adopts the latest friction bonding technology. The body design is solid and durable, and the overall operation and maintenance is quite easy. Tp-703vlm uses PP or pet packing belt, which is suitable for vertical packing of various pallets. It can also be used with unmanned assembly line to greatly improve the production efficiency of the production line.
Product Introduction
Tp-703vlm Pollux is a fully automatic through arrow tray vertical packer. The machine head adopts the latest friction bonding technology. The body design is solid and durable, and the overall operation and maintenance is quite easy. Tp-703vlm uses PP or pet packing belt, which is suitable for vertical packing of various pallets. It can also be used with unmanned assembly line to greatly improve the production efficiency of the production line.



This series includes:

Tp-703vm fixed frame, mobile head
Tp-703v fixed frame, fixed head
Tp-703vlm mobile arrow piercing and mobile nose

Machine characteristics

• state of the art baling head design with a tightening force of up to 3000n
• using the most advanced friction bonding technology
• using Siemens PLC and touch screen
• the head is movable and close to the package to ensure high tightening force
• modular bow design, bow size adjustment elasticity
• the mobile arrow can pass through the pallet socket to easily meet the packaging requirements of various pallet types
• adjustable bonding and cooling time to ensure high quality adhesive tape

Frame size

H W1000140016002000
1650
2050
2450
2850


3250

● Standard size:w 1400 xH 2450mm

Technical parameter

Specification and modelFull automatic through arrow tray baling machine   tp-703vlm Pollux
Packing belt specificationPP or pet tape 9.12 or 15.5mm
Size of tape discInner diameter 406mm
Tightening forceL0-300kg (standard), 20-120kg (optional)
Speed70 pallets / hour (vertical double)
Dianzhuang380V 50Hz 3PH


Label: Through arrow baling
