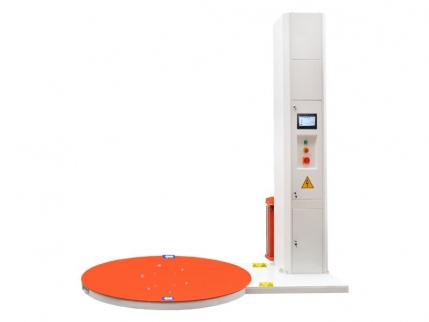

Standard winder JH-206P
Classification: Automatic winding machine
Describe：
Jiahong automatic winding machine is a newly developed intelligent packaging equipment. It adopts microcomputer control system, which can carry out winding and packaging operations for packaging materials with various process requirements. It has stability, strong anti-interference ability, and can work normally in the environment of high dust, high noise, strong electromagnetic interference and temperature change.
Consultation
Product Introduction

Automatic winding machine

Jiahong automatic winding machine is a newly developed intelligent packaging equipment. It adopts microcomputer control system, which can carry out winding and packaging operations for packaging materials with various process requirements. It has stability, strong anti-interference ability, and can work normally in the environment of high dust, high noise, strong electromagnetic interference and temperature change.

• Humanized man-machine interface operation panel, easy to operate and set up
• Constant tension film holder, flat and stable film output, even tensile force, perfect packaging
• PLC multi-function program setting, setting the film coating level at will, infrared induction automatic height measurement
• Slow start and stop function, safe and stable, automatic reset and bar installation, convenient and fast
• The membrane frame is a pre pulling mechanism of AC motor, equipped with variable frequency speed regulation, pre stretching can reach 250%, saving materials

ModelJH-206P
Outline size254Sx 1650x2270mm
Turntable diameter1650mm
Packing height2100mm
Turntable height78mm
Pre stretching250%
Turntable speed0-12 rpm
Work efficiency20-40 Torr / h
Power voltageTurntable 0.75KW. Membrane support 0.23kw. Column 0.37kw/ac220v
PackagingLLDPE tensile film thickness 17-25um width: 500mm paper core 3 inch core
Deadweight2000kg
Weight of whole machine700kg


Label： JH-206P Standard winder
