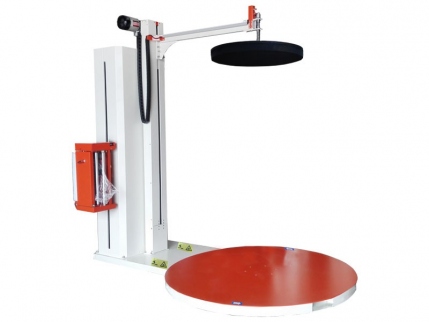

Pressure winding machine JH-206Y
Classification: Automatic winding machine
Describe：
Jiahong automatic winding machine is a newly developed intelligent packaging equipment. It uses a microcomputer control system, which can carry out the winding and packaging operations required by various processes. It is stable, strong in anti-interference, and can work normally in the environment of high dust, high noise, strong electromagnetic interference and temperature change.
Consultation
Product Introduction
Automatic winding machine
Jiahong automatic winding machine is a newly developed intelligent packaging equipment. It uses a microcomputer control system, which can carry out the winding and packaging operations required by various processes. It is stable, strong in anti-interference, and can work normally in the environment of high dust, high noise, strong electromagnetic interference and temperature change.
Humanized man-machine interface operation panel, easy to operate and set up
Constant tension film holder, flat and stable film output, even tensile force, perfect packaging
PLC multi-function program setting, setting the film coating level at will, infrared induction automatic height measurement
Slow start and stop function, safe and stable, automatic reset and bar installation, convenient and fast
The membrane frame is a pre pulling mechanism of AC motor, equipped with variable frequency speed regulation, pre stretching can reach 250%, saving materials

ModelJH-206Y
Outline size254Sx 1650x2270mm
Turntable diameter1650mm
Packing height2100mm
Turntable height78mm
Pre stretching250%
Turntable speed0-12 rpm
Work efficiency20-40 Torr / h
Power voltageTurntable 0.75KW. Membrane support 0.23kw. Column 0.37kw/ac220v
PackagingLLDPE tensile film thickness 17-25um width: 500mm paper core 3 inch core
Deadweight2000kg
Weight of whole machine700kg


Label： JH-206Y Pressure machine
