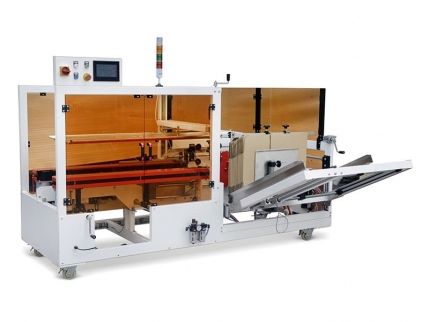

Automatic unpacking machine JH-20TX
Classification: Automatic opening and sealing machine
Describe：
Fe500 is suitable for multiple specifications of cartons at the same time; when changing specifications, it can automatically adjust the width and height.
Fa500 / fb500 / fs500 / fs500 can only be used with one specification at a time, and the width and height can be adjusted manually by changing the specification.
The transmission mode is driven by the lower (both sides) upper and lower belts.

Consultation
Product Introduction
♦ Fe500 is suitable for multiple specifications of cartons at the same time; when changing specifications, it can automatically adjust the width and height.
♦ Fa500 / fb500 / fs500 / fs500 can only be used with one specification at a time, and the width and height can be adjusted manually by changing the specification.
♦ The transmission mode is driven by the lower (both sides) upper and lower belts.
♦ It can be used for wiring or stand-alone operation, manually folding the cover and sealing the "one" box at a time.
♦ The motor adopts Taiwan Taibang brand and the belt adopts Shanghai Yongli brand.
♦ Standard machine table height is 600mm.
♦ The tape applicator adopts the latest design, with precise and firm structure, smooth operation and long service life.
♦ In addition to standard specifications, non-standard customization is acceptable.

ModelJH-20TX
Minimum carton sizeL280*W150*H100MM（Special specification non-standard customization）
Maximum carton sizeL450*W400*H350MM（Special specification non-standard customization）
Sealing speed20 m / min (8-10 boxes)
Applicable power supply220V/380V 50HZ
Tape specification2 / 2.5 / 3 inch (option 1)
Power consumption0.8KW
Machine sizeL2000*W1910*H1450mm
Standard table height620mm
Machine weight400KGS
Applicable gas source6kgf/cm,100nl/min


Label： Automatic JH-20TX machine
