Automatic "I" type box sealer JH-FC500+JH-FG500L
Classification: Automatic opening and sealing machine
Describe：
Features: scope of application: electronics, household appliances, toys, food, beverage, daily chemical industry, books and periodicals, printing, stationery, textile and clothing, medical treatment, medicine, sports equipment, hardware, building materials, home furnishing, logistics and e-commerce, etc.
Consultation
Product Introduction

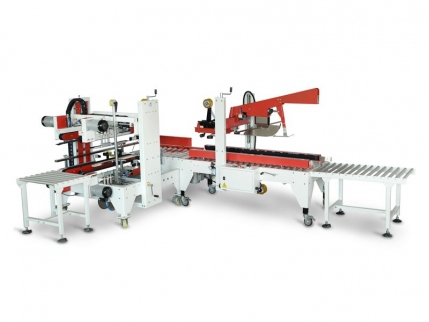

Full automatic "I" box sealer jh-fc500 + jh-fg500l
Features: scope of application: electronics, household appliances, toys, food, beverage, daily chemical industry, books and periodicals, printing, stationery, textile and clothing, medical treatment, medicine, sports equipment, hardware, building materials, home furnishing, logistics and e-commerce, etc.
Automatically adjust width and height when changing specifications
Mechanical placement process: L-shaped direction is adopted to save space, or linear direction.
Automatic assembly line operation, manual cover folding, up and down "one" type box sealer and L-type four corner box sealer are completed perfectly.
In addition to standard specifications, special carton specifications can be customized.
The sealing effect is beautiful, flat and wrinkle free, saving more than 10% of adhesive paper.
The motor adopts Taiwan's "Taibang" brand, and the belt adopts the domestic famous brand "Shanghai Yongli" cylinder; Yadeke, electric; Omron / Siemens
The adhesive tape applicator adopts "Italy" technology, the machine is durable and durable, with long service life

ModelJH-FC500+JH-FG500L
Minimum carton sizeL340*W200*H180MM（Special specification non-standard customization）
Maximum carton sizeL700*W500*H500MM（Special specification non-standard customization）
Sealing speed20 m / min (6-10 boxes)
Applicable power supply220V 50HZ
Tape specification2 / 2.5 / 3 inch (option 1)
Power consumption0.8KW
Machine sizeL2450*W1910*H1500mm
Standard table height620mm
Machine weight520KGS
Applicable gas source6kgf/cm,100nl/min


Label： JH-FC500+JH-FG500L
